    Takedown lever moving?

    Question to you guys. I have 2 sigs and when I rack the slide with an empty mag inserted, the takedown lever moves down on both of them. Is this normal?

  2. #2
    Growler67's Avatar
    Growler67 is offline Member
    Join Date
    Sep 2008
    Location
    S. Puget Sound, WA
    Posts
    715
    Slightly, full 90 degrees, wiggles in place? A little more specificity on "moves" would be more helpful. Pics too, maybe, depending on what is going on (before and after). Just sayin'.

  3. #3
    DevilsJohnson is offline Senior Member
    Join Date
    Oct 2007
    Location
    Kentucky
    Posts
    3,373
    Quote Originally Posted by Growler67 View Post
    Slightly, full 90 degrees, wiggles in place? A little more specificity on "moves" would be more helpful. Pics too, maybe, depending on what is going on (before and after). Just sayin'.
    +1
    It's hard to understand what you are saying is "moving down"

    I took a look at both mine and don't see any movement in mine. I can give you that much.

  4. #4
    mentalplane is offline Junior Member
    Join Date
    Apr 2009
    Posts
    8

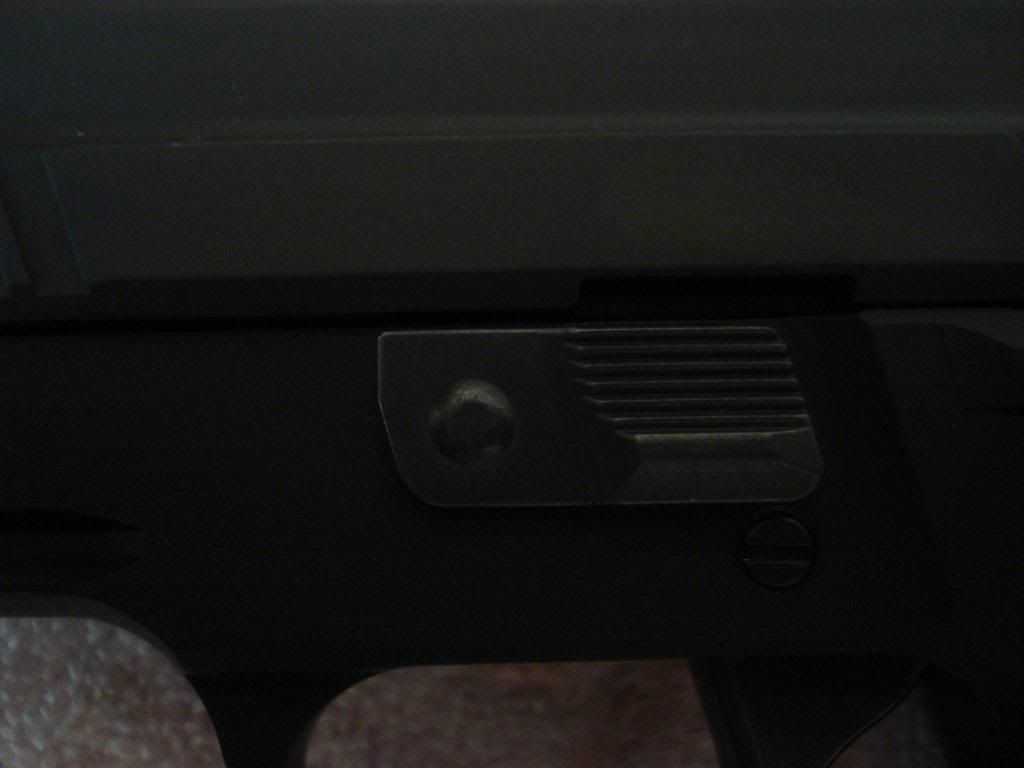

    Here are one of the guns in question. my brand new sig 229 elite dark





  5. #5
    mentalplane is offline Junior Member
    Join Date
    Apr 2009
    Posts
    8
    The lever doesnt move a whole bunch but it is pretty clear from the pics that it does move. is this something i should be concerned about?

  6. #6
    DevilsJohnson is offline Senior Member
    Join Date
    Oct 2007
    Location
    Kentucky
    Posts
    3,373
    I wouldn't think so really. It's not getting anywhere near where it has to for the slide to be affected.

  7. #7
    mentalplane is offline Junior Member
    Join Date
    Apr 2009
    Posts
    8
    do you know why is the lever even moving in the first place? does your sigs lever move that much too devil?

  8. #8
    Growler67's Avatar
    Growler67 is offline Member
    Join Date
    Sep 2008
    Location
    S. Puget Sound, WA
    Posts
    715
    It moves that much because of the way SiG designed their lock-up lug/barrel as a single piece assembly, unlike that of the Beretta 92 seires or 1911's for example. When the slide is back, the muzzle of the barrel tips up as the lock-up lug drops down. In the process it comes out of contact with the cross bar portion of the take down lever, that lack of tension causes the slight droop. When the slide is in full battery, contact with the cross bar locks up the action and the take down lever sits higher. Nothing to be concerned or worried about.

  9. #9
    mentalplane is offline Junior Member
    Join Date
    Apr 2009
    Posts
    8
    thanks growler, you're always around to give an answer when I have a question.
